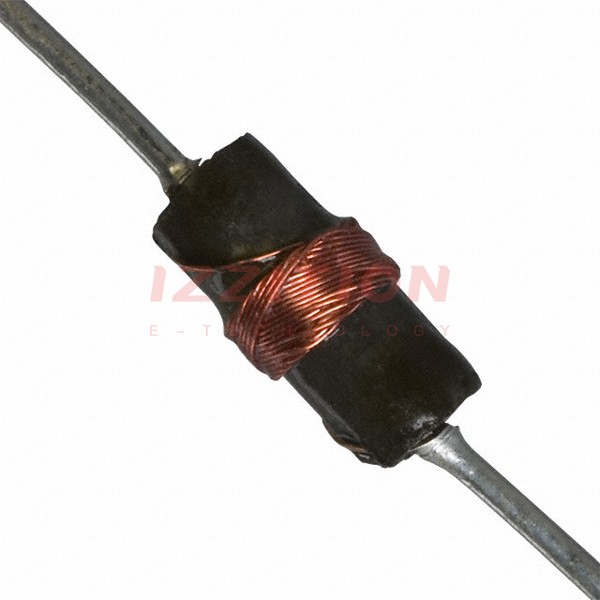

| Part Number | 70F105AI-RC | 70F106AI-RC | 70F155AI-RC | 70F102AI-RC | 70F103AI-RC | 70F104AI-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron | Iron | Iron |
| Inductance | 10 µH | 1 µH | 15 µH | 10 mH | 1 mH | 100 µH |
| Tolerance | ±10% | ±20% | ±10% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 277 mA | 2.041 A | 250 mA | 38 mA | 79 mA | 139 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.56Ohm Max | 48mOhm Max | 1.92Ohm Max | 101Ohm Max | 24Ohm Max | 7.68Ohm Max |
| Q @ Freq | 36 @ 7.9MHz | 41 @ 25MHz | 52 @ 2.5MHz | 41 @ 250kHz | 30 @ 790kHz | 25 @ 2.5MHz |
| Frequency - Self Resonant | 19MHz | 118MHz | 16MHz | 520kHz | 1.4MHz | 3.6MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 25 MHz | 2.5 MHz | 250 kHz | 790 kHz | 2.5 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
