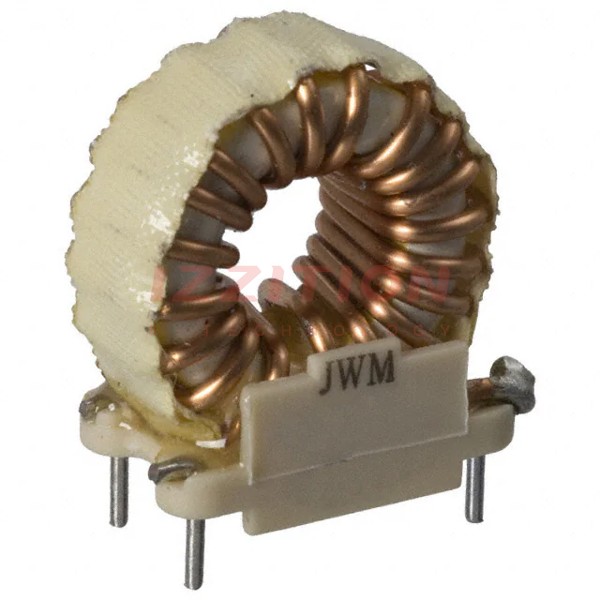

| Part Number | 6731-RC | 6701-RC | 6711-RC | 6721-RC | 6730-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 40 µH | 10 µH | 50 µH | 250 µH | 70 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 4 A | 11 A | 9.5 A | 8 A | 3 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 25mOhm Max | 8mOhm Max | 12mOhm Max | 41mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.850" L x 0.425" W (21.59mm x 10.80mm) | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 2.125" L x 1.100" W (53.97mm x 27.94mm) | 0.850" L x 0.425" W (21.59mm x 10.80mm) |
| Height - Seated (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.375" (34.93mm) | 2.250" (57.15mm) | 1.000" (25.40mm) |
