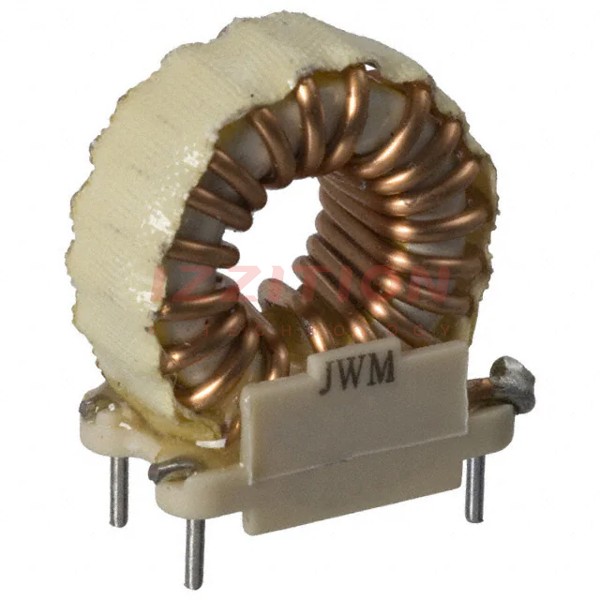

| Part Number | 6730-RC | 6731-RC | 6710-RC | 6720-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 70 µH | 40 µH | 1 mH | 4.5 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 3 A | 4 A | 1.5 A | 1.25 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50mOhm Max | 25mOhm Max | 980mOhm Max | 2.64Ohm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.850" L x 0.425" W (21.59mm x 10.80mm) | 0.850" L x 0.425" W (21.59mm x 10.80mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) |
| Height - Seated (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.250" (31.75mm) | 1.950" (49.53mm) |
