Please send RFQ , we will respond immediately.

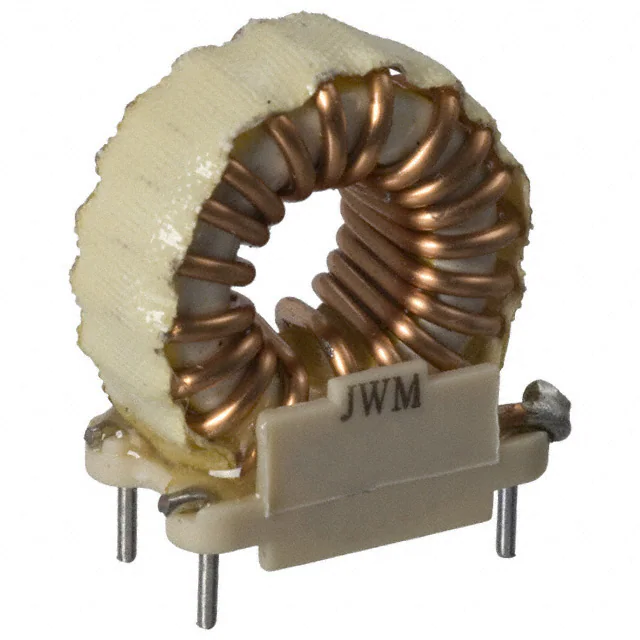

| Part Number | 6726-RC | 6729-RC | 6727-RC | 6706-RC | 6716-RC | 6720-RC | 6721-RC | 6722-RC | 6725-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 25 µH | 100 µH | 35 µH | 25 µH | 125 µH | 4.5 mH | 250 µH | 900 µH | 8 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 2.5 A | 2.5 A | 2.5 A | 9 A | 7.75 A | 1.25 A | 8 A | 3.75 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 80mOhm Max | 35mOhm Max | 12mOhm Max | 32mOhm Max | 2.64Ohm Max | 41mOhm Max | 175mOhm Max | 3.34Ohm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.550" L x 0.425" W (13.97mm x 10.80mm) | 0.850" L x 0.425" W (21.59mm x 10.80mm) | 0.700" L x 0.425" W (17.78mm x 10.80mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 2.125" L x 1.100" W (53.97mm x 27.94mm) | 2.125" L x 1.100" W (53.97mm x 27.94mm) | 2.125" L x 1.100" W (53.97mm x 27.94mm) |
| Height - Seated (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.250" (31.75mm) | 1.950" (49.53mm) | 1.950" (49.53mm) | 2.250" (57.15mm) | 2.250" (57.15mm) | 2.250" (57.15mm) |
