Please send RFQ , we will respond immediately.

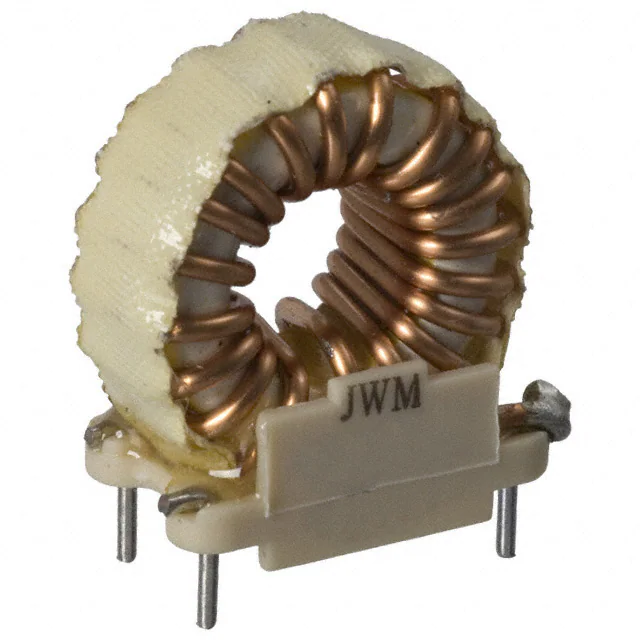

| Part Number | 6718-RC | 6719-RC | 6708-RC | 6710-RC | 6711-RC | 6712-RC | 6713-RC | 6714-RC | 6715-RC | 6716-RC | 6717-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 1.1 mH | 2.25 mH | 400 µH | 1 mH | 50 µH | 150 µH | 700 µH | 1.25 mH | 1.6 mH | 125 µH | 500 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 2.5 A | 1.75 A | 2.25 A | 1.5 A | 9.5 A | 4.75 A | 2.25 A | 1.75 A | 1.5 A | 7.75 A | 4 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 330mOhm Max | 920mOhm Max | 330mOhm Max | 980mOhm Max | 12mOhm Max | 46mOhm Max | 420mOhm Max | 850mOhm Max | 1.27Ohm Max | 32mOhm Max | 150mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 1.812" L x 0.900" W (46.02mm x 22.86mm) |
| Height - Seated (Max) | 1.950" (49.53mm) | 1.950" (49.53mm) | 1.250" (31.75mm) | 1.250" (31.75mm) | 1.375" (34.93mm) | 1.375" (34.93mm) | 1.375" (34.93mm) | 1.375" (34.93mm) | 1.375" (34.93mm) | 1.950" (49.53mm) | 1.950" (49.53mm) |
