Please send RFQ , we will respond immediately.

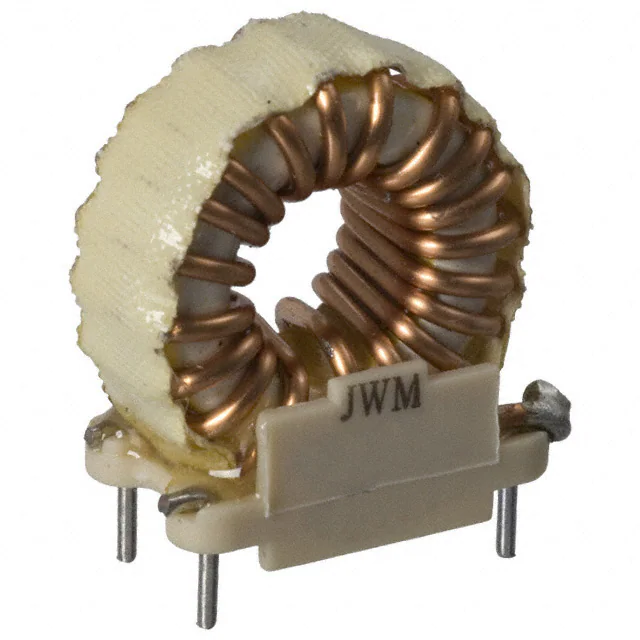

| Part Number | 6702-RC | 6703-RC | 6704-RC | 6706-RC | 6707-RC | 6712-RC | 6722-RC | 6705-RC | 6708-RC | 6302-RC | 6701-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Drum Core, Wirewound | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Ferrite | Iron Powder |
| Inductance | 25 µH | 125 µH | 275 µH | 25 µH | 75 µH | 150 µH | 900 µH | 450 µH | 400 µH | 2.5 mH | 10 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±5% | ±15% |
| Current Rating (Amps) | 5.5 A | 2.75 A | 2 A | 9 A | 5 A | 4.75 A | 3.75 A | 1.5 A | 2.25 A | 160 mA | 11 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 14mOhm Max | 120mOhm Max | 240mOhm Max | 12mOhm Max | 40mOhm Max | 46mOhm Max | 175mOhm Max | 490mOhm Max | 330mOhm Max | 9Ohm Max | 8mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | 95 @ 252kHz | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | 1.3MHz | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 252 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical, 4 Leads (Open) | Axial | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 2.125" L x 1.100" W (53.97mm x 27.94mm) | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | 0.875" L x 0.425" W (22.22mm x 10.80mm) |
| Height - Seated (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.250" (31.75mm) | 1.250" (31.75mm) | 1.375" (34.93mm) | 2.250" (57.15mm) | 1.000" (25.40mm) | 1.250" (31.75mm) | - | 1.000" (25.40mm) |
