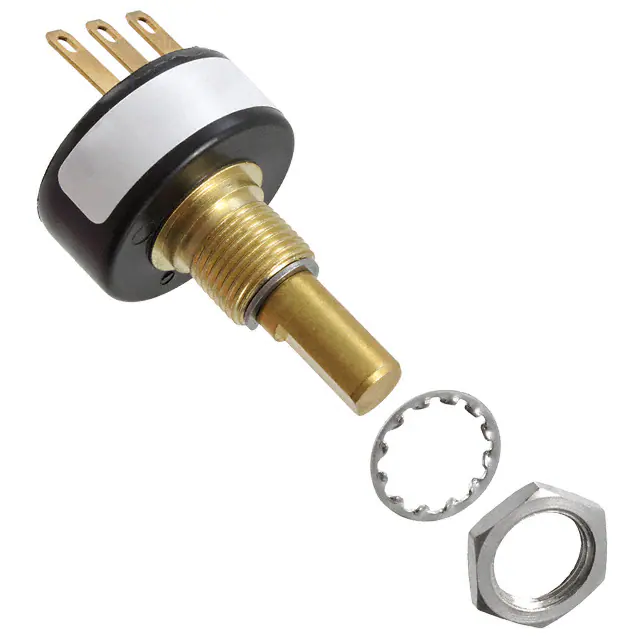

| Part Number | 6630S0A-C28-R103 | 6630S1A-C28-R103 | 6630S0A-B28-R103 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Resistance (Ohms) | 10k | 10k | 10k |
| Tolerance | ±15% | ±15% | ±15% |
| Power (Watts) | 1W | 1W | 1W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C |
| Rotation | Continuous | 340° | Continuous |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic |
| Termination Style | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Flatted | Flatted | Slotted |
| Actuator Length | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
