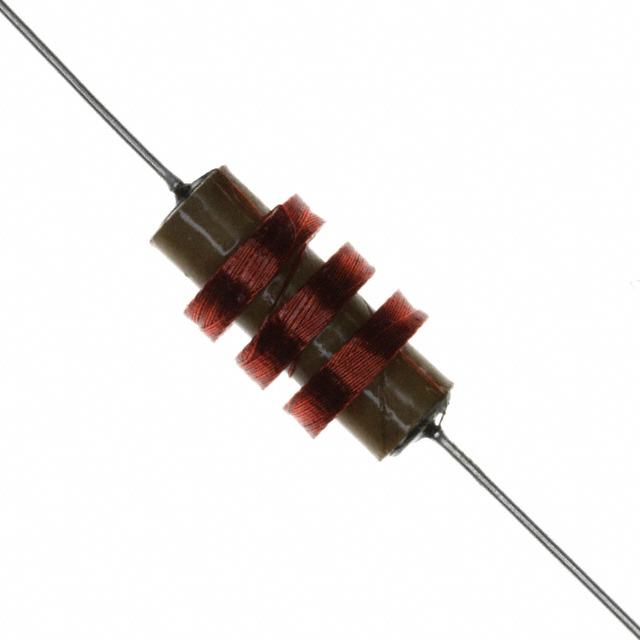

| Part Number | 6306-RC | 6706-RC | 6308-RC | 6302-RC | 6304-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Toroidal | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Iron Powder | Ferrite | Ferrite | Ferrite |
| Inductance | 10 mH | 25 µH | 25 mH | 2.5 mH | 5 mH |
| Tolerance | ±5% | ±15% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 100 mA | 9 A | 65 mA | 160 mA | 160 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Shielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 31Ohm Max | 12mOhm Max | 82Ohm Max | 9Ohm Max | 14Ohm Max |
| Q @ Freq | 95 @ 79.6kHz | - | 90 @ 79.6kHz | 95 @ 252kHz | 80 @ 252kHz |
| Frequency - Self Resonant | 710kHz | - | 470kHz | 1.3MHz | 1MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79.6 kHz | 1 kHz | 79.6 kHz | 252 kHz | 252 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Radial, Vertical, 4 Leads (Open) | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) |
| Height - Seated (Max) | - | 1.250" (31.75mm) | - | - | - |
