Please send RFQ , we will respond immediately.

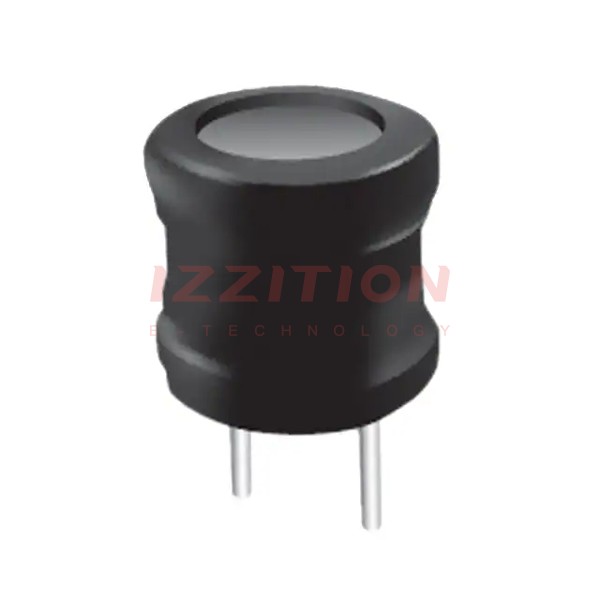

| Part Number | 6100-820K-RC | 6100-822K-RC | 6000-820K-RC | 6100-220K-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Not For New Designs | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 8.2 mH | 82 µH | 22 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2.18 A | 220 mA | 1.3 A | 4.52 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 150mOhm Max | 16Ohm Max | 230mOhm Max | 39mOhm Max |
| Q @ Freq | 6.3 @ 2.52MHz | 0.5 @ 252kHz | 30 @ 2.52MHz | 12 @ 2.52MHz |
| Frequency - Self Resonant | 6.3MHz | 500kHz | 4.1MHz | 12MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 2.52 MHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.354" Dia (9.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.480" (12.20mm) | 0.413" (10.50mm) |
