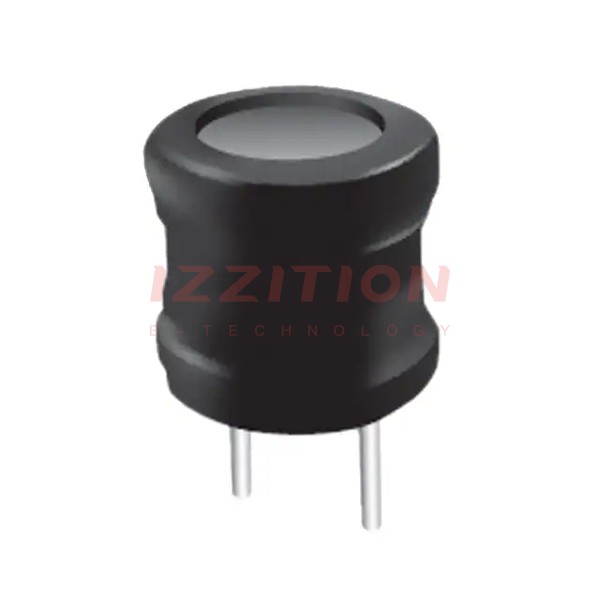

| Part Number | 6100-562K-RC | 6100-561K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 mH | 560 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 270 mA | 830 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 9.45Ohm Max | 870mOhm Max |
| Q @ Freq | 0.7 @ 252kHz | 2.3 @ 796kHz |
| Frequency - Self Resonant | 700kHz | 2.3MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) |
