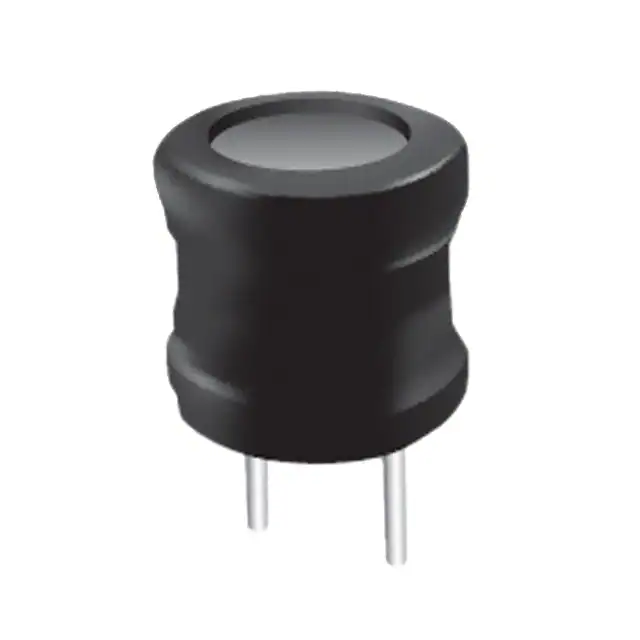

| Part Number | 6100-222K-RC | 6100-272K-RC | 6100-822K-RC | 6000-222K-RC | 6100-122K-RC | 6100-220K-RC | 6100-221K-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Not For New Designs | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 mH | 2.7 mH | 8.2 mH | 2.2 mH | 1.2 mH | 22 µH | 220 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 420 mA | 380 mA | 220 mA | 360 mA | 570 mA | 4.52 A | 1.32 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.26Ohm Max | 5.41Ohm Max | 16Ohm Max | 5.9Ohm Max | 2.2Ohm Max | 39mOhm Max | 350mOhm Max |
| Q @ Freq | 1.1 @ 252kHz | 1 @ 252kHz | 0.5 @ 252kHz | 15 @ 252kHz | 1.4 @ 252kHz | 12 @ 2.52MHz | 3.5 @ 796kHz |
| Frequency - Self Resonant | 1.1MHz | 1MHz | 500kHz | 800kHz | 1.4MHz | 12MHz | 3.5MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 252 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.354" Dia (9.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.480" (12.20mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
