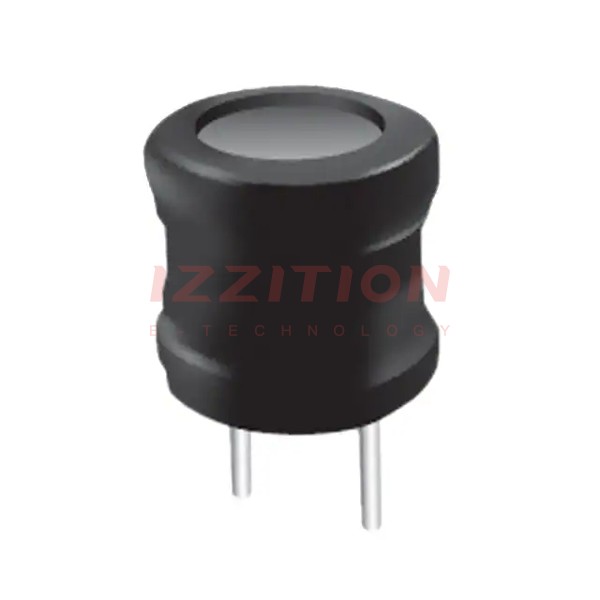

| Part Number | 6100-101K-RC | 6100-102K-RC | 6100-103K-RC | 6100-151K-RC | 6000-101K-RC | 6100-100K-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Not For New Designs | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 1 mH | 10 mH | 150 µH | 100 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.98 A | 620 mA | 200 mA | 1.61 A | 1.4 A | 6.33 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 160mOhm Max | 1.55Ohm Max | 19.3Ohm Max | 240mOhm Max | 280mOhm Max | 20mOhm Max |
| Q @ Freq | 5.8 @ 796kHz | 1.6 @ 252kHz | 0.5 @ 252kHz | 4.2 @ 796kHz | 20 @ 796kHz | 21 @ 2.52MHz |
| Frequency - Self Resonant | 5.8MHz | 1.6MHz | 500kHz | 4.2MHz | 3.7MHz | 21MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 796 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.354" Dia (9.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.480" (12.20mm) | 0.413" (10.50mm) |
