Please send RFQ , we will respond immediately.

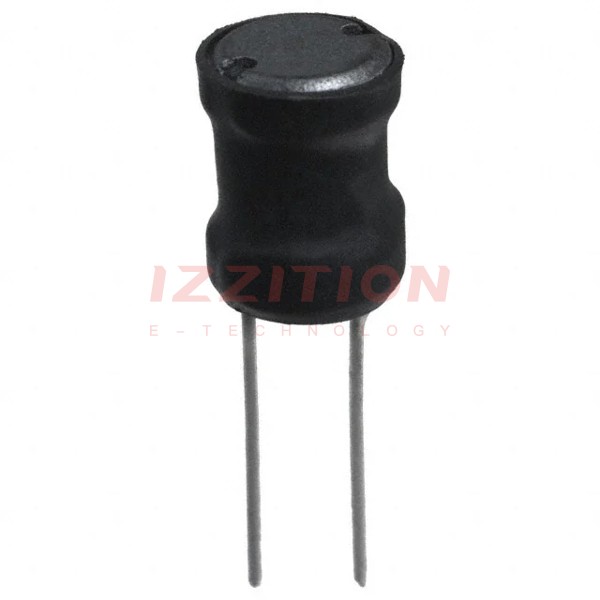

| Part Number | 6000-181K-RC | 6000-681K-RC | 6000-101K-RC | 6000-121K-RC | 6000-151K-RC | 6000-180K-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 680 µH | 100 µH | 120 µH | 150 µH | 18 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.08 A | 590 mA | 1.4 A | 1.25 A | 1.15 A | 2.66 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 580mOhm Max | 1.6Ohm Max | 280mOhm Max | 320mOhm Max | 370mOhm Max | 61mOhm Max |
| Q @ Freq | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 2.8MHz | 1.6MHz | 3.7MHz | 3.4MHz | 3.2MHz | 11MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) | 0.480" (12.20mm) |
