Please send RFQ , we will respond immediately.

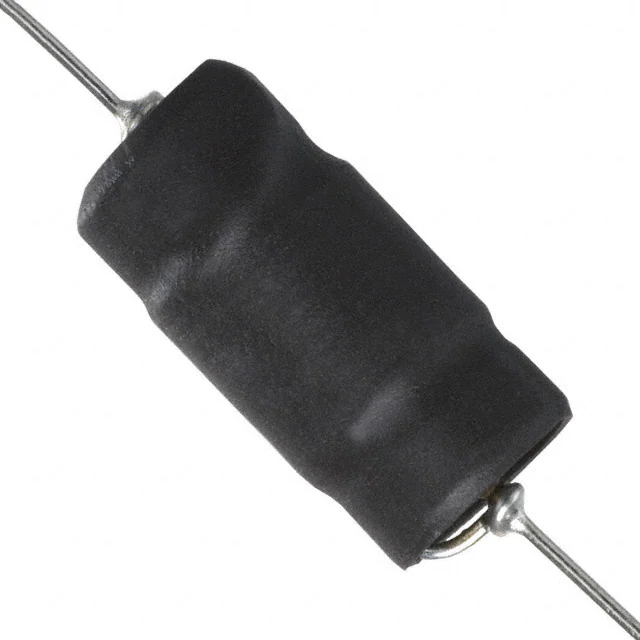

| Part Number | 5900-472 | 5900-473 | 5900-272 | 5900-470 | 5900-471 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 mH | 47 mH | 2.7 mH | 47 µH | 470 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 340 mA | 100 mA | 410 mA | 3.1 A | 1 A |
| Current - Saturation (Isat) | 380mA | 120mA | 510mA | 3.8A | 1.2A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.7Ohm Max | 40Ohm Max | 2.5Ohm Max | 45mOhm Max | 420mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Height - Seated (Max) | - | - | - | - | - |
