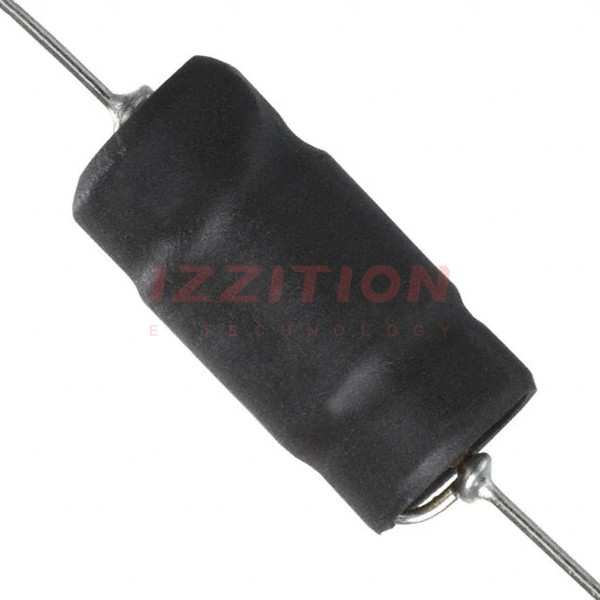

| Part Number | 5900-393 | 5900-333 | 5900-390 | 5900-391 | 5900-392 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 39 mH | 33 mH | 39 µH | 390 µH | 3.9 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 120 mA | 130 mA | 3.3 A | 1.2 A | 370 mA |
| Current - Saturation (Isat) | 130mA | 140mA | 4.3A | 1.3A | 420mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 31Ohm Max | 25Ohm Max | 39mOhm Max | 310mOhm Max | 3.1Ohm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Height - Seated (Max) | - | - | - | - | - |
