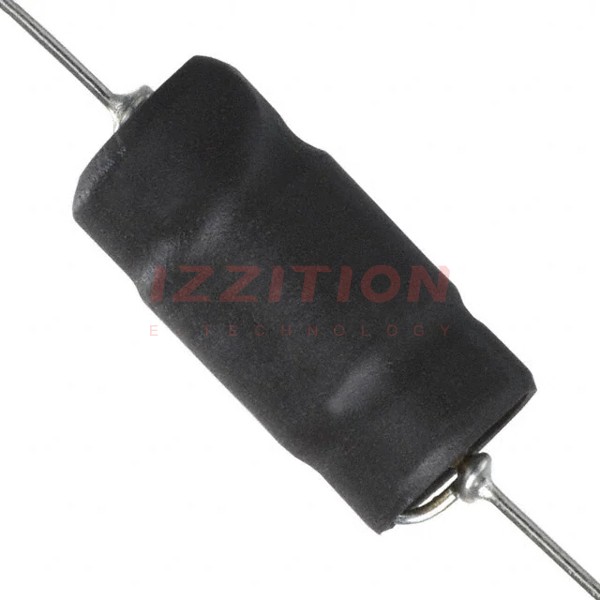

| Part Number | 5900-333-RC | 5900-393-RC | 5900-330-RC | 5900-331-RC | 5900-332-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 33 mH | 39 mH | 33 µH | 330 µH | 3.3 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 130 mA | 120 mA | 3.4 A | 1.2 A | 390 mA |
| Current - Saturation (Isat) | 140mA | 130mA | 4.6A | 1.4A | 460mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 25Ohm Max | 31Ohm Max | 37mOhm Max | 285mOhm Max | 2.8Ohm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Height - Seated (Max) | - | - | - | - | - |
