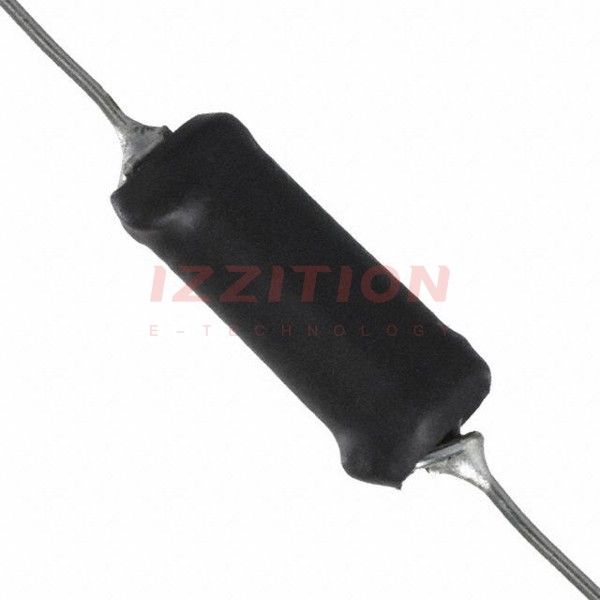

| Part Number | 5800-8R2 | 5800-822 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 8.2 µH | 8.2 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 2.2 A | 86 mA |
| Current - Saturation (Isat) | 3.9A | 130mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 31mOhm Max | 19.7Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) |
| Height - Seated (Max) | - | - |
