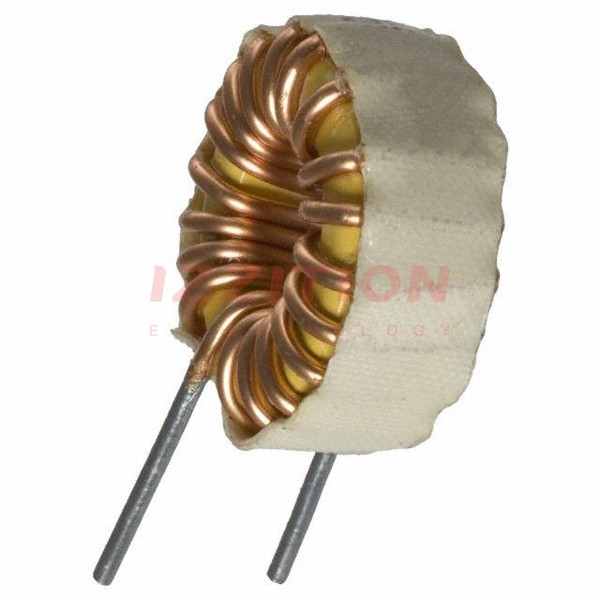

| Part Number | 5731-RC | 5631-RC | 5701-RC | 5711-RC | 5721-RC | 5730-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Active | Active | Active | Active |
| Type | Toroidal | Drum Core, Wirewound | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Ferrite | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 40 µH | 5 mH | 10 µH | 50 µH | 250 µH | 70 µH |
| Tolerance | ±15% | ±10% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 4 A | 2.2 A | 11 A | 9.5 A | 8 A | 3 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 25mOhm Max | 714mOhm Max | 8mOhm Max | 12mOhm Max | 41mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | 1.500" Dia (38.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) |
| Height - Seated (Max) | - | 1.110" (28.19mm) | - | - | - | - |
