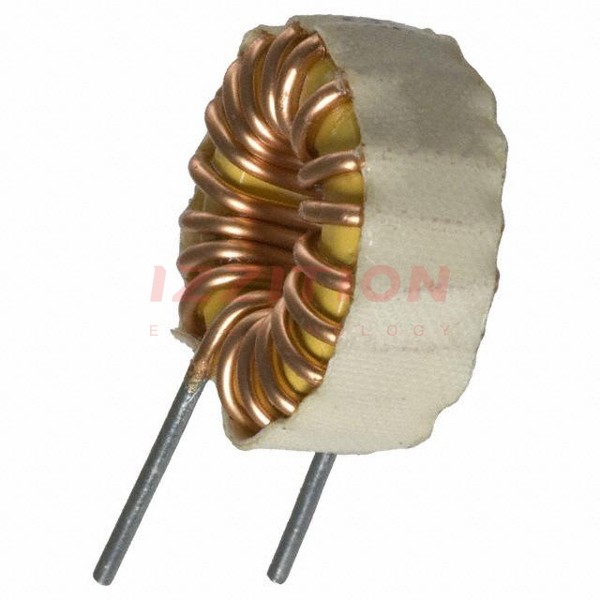

| Part Number | 5730-RC | 5731-RC | 5630-RC | 5710-RC | 5720-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Active | Active |
| Type | Toroidal | Toroidal | Drum Core, Wirewound | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Ferrite | Iron Powder | Iron Powder |
| Inductance | 70 µH | 40 µH | 2.5 mH | 1 mH | 4.5 mH |
| Tolerance | ±15% | ±15% | ±10% | ±15% | ±15% |
| Current Rating (Amps) | 3 A | 4 A | 2.8 A | 1.5 A | 1.25 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 25mOhm Max | 464mOhm Max | 980mOhm Max | 2.64Ohm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | 1.500" Dia (38.10mm) | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) |
| Height - Seated (Max) | - | - | 1.500" (38.10mm) | - | - |
