Please send RFQ , we will respond immediately.

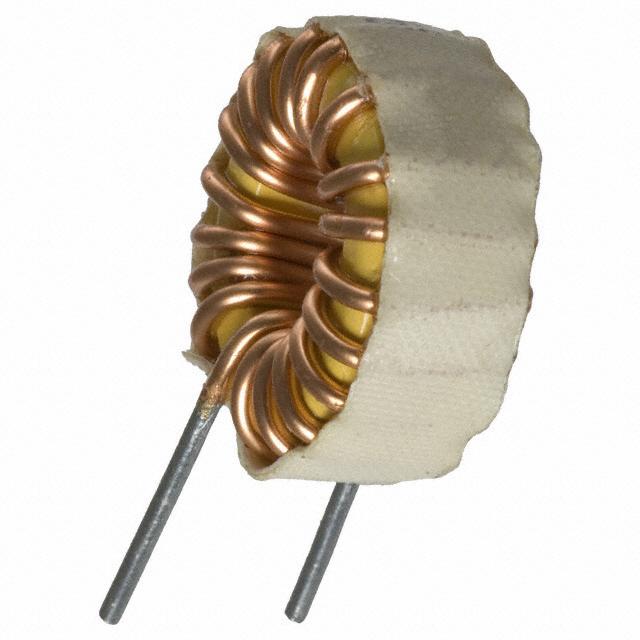

| Part Number | 5721-RC | 5723-RC | 5725-RC | 5731-RC | 5722-RC | 5724-RC | 5726-RC | 5729-RC | 5728-RC | 5727-RC | 5521-RC | 5621-RC | 5701-RC | 5711-RC | 5720-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Drum Core, Wirewound | Drum Core, Wirewound | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Ferrite | Ferrite | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 250 µH | 1.8 mH | 8 mH | 40 µH | 900 µH | 4 mH | 25 µH | 100 µH | 50 µH | 35 µH | 5 µH | 250 µH | 10 µH | 50 µH | 4.5 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±20% | ±10% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 8 A | 2.5 A | 1 A | 4 A | 3.75 A | 1.75 A | 2.5 A | 2.5 A | 2.5 A | 2.5 A | 23 A | 6.4 A | 11 A | 9.5 A | 1.25 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 41mOhm Max | 550mOhm Max | 3.34Ohm Max | 25mOhm Max | 175mOhm Max | 1.16Ohm Max | 40mOhm Max | 80mOhm Max | 60mOhm Max | 35mOhm Max | 4mOhm Max | 59mOhm Max | 8mOhm Max | 12mOhm Max | 2.64Ohm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Horizontal Cylinder | Radial, Vertical Cylinder | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 0.550" Dia x 0.220" W (13.97mm x 5.59mm) | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | 0.750" Dia x 0.320" W (19.05mm x 8.13mm) | 0.700" Dia x 0.320" W (17.78mm x 8.13mm) | 0.720" Dia x 1.380" L (18.28mm x 35.05mm) | 1.500" Dia (38.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | 1.110" (28.19mm) | - | - | - |
