Please send RFQ , we will respond immediately.

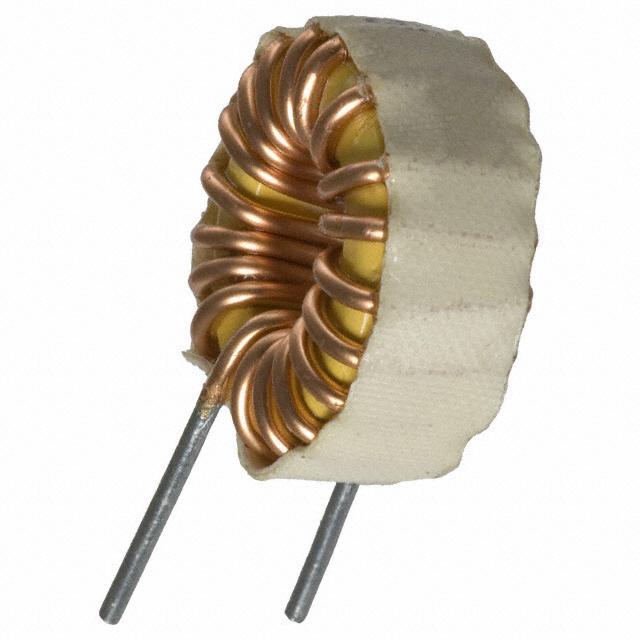

| Part Number | 5715-RC | 5725-RC | 5716-RC | 5717-RC | 5718-RC | 5719-RC | 5615-RC | 5705-RC | 5710-RC | 5711-RC | 5712-RC | 5713-RC | 5714-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Drum Core, Wirewound | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Ferrite | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 1.6 mH | 8 mH | 125 µH | 500 µH | 1.1 mH | 2.25 mH | 250 µH | 450 µH | 1 mH | 50 µH | 150 µH | 700 µH | 1.25 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±10% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 1.5 A | 1 A | 7.75 A | 4 A | 2.5 A | 1.75 A | 4.6 A | 1.5 A | 1.5 A | 9.5 A | 4.75 A | 2.25 A | 1.75 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.27Ohm Max | 3.34Ohm Max | 32mOhm Max | 150mOhm Max | 330mOhm Max | 920mOhm Max | 83mOhm Max | 490mOhm Max | 980mOhm Max | 12mOhm Max | 46mOhm Max | 420mOhm Max | 850mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | 1.220" Dia (31.00mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) |
| Height - Seated (Max) | - | - | - | - | - | - | 1.110" (28.19mm) | - | - | - | - | - | - |
