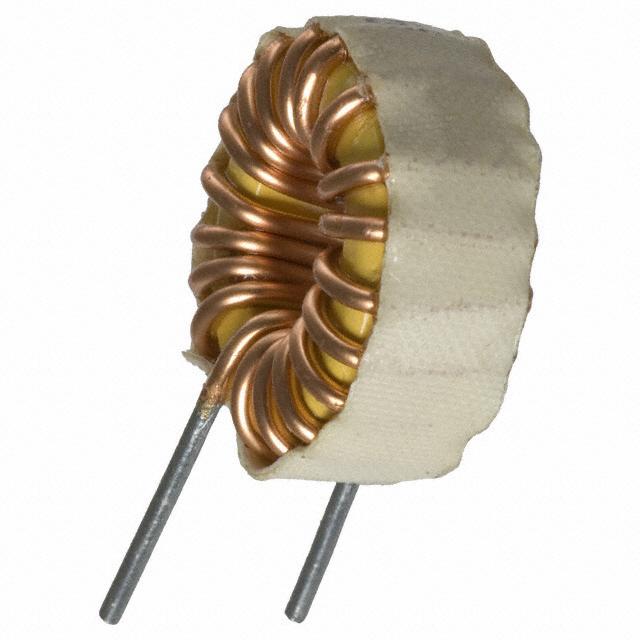

| Part Number | 5708-RC | 5728-RC | 5718-RC | 5709-RC | 5608-RC | 5701-RC | 5702-RC | 5703-RC | 5704-RC | 5705-RC | 5706-RC | 5707-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Drum Core, Wirewound | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Ferrite | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 400 µH | 50 µH | 1.1 mH | 800 µH | 1 mH | 10 µH | 25 µH | 125 µH | 275 µH | 450 µH | 25 µH | 75 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±10% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 2.25 A | 2.5 A | 2.5 A | 1.75 A | 1.3 A | 11 A | 5.5 A | 2.75 A | 2 A | 1.5 A | 9 A | 5 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 330mOhm Max | 60mOhm Max | 330mOhm Max | 640mOhm Max | 801mOhm Max | 8mOhm Max | 14mOhm Max | 120mOhm Max | 240mOhm Max | 490mOhm Max | 12mOhm Max | 40mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | 0.750" Dia x 0.320" W (19.05mm x 8.13mm) | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | 0.830" Dia (21.08mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) |
| Height - Seated (Max) | - | - | - | - | 0.910" (23.11mm) | - | - | - | - | - | - | - |
