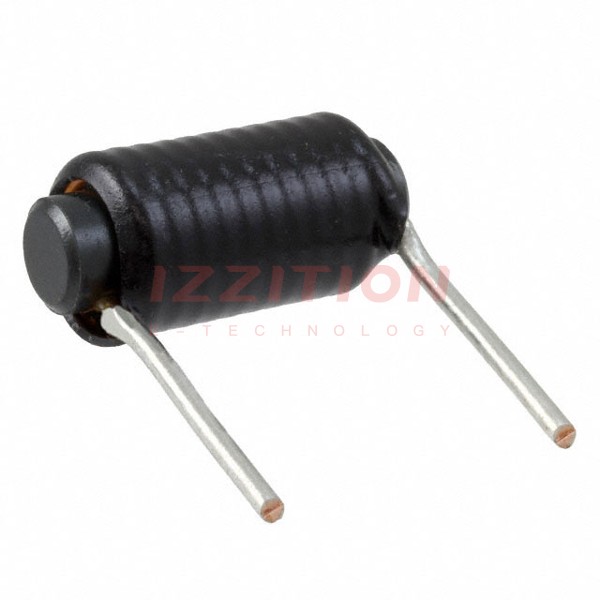

| Part Number | 5521-RC | 5721-RC | 5621-RC | 5501-RC | 5520-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Toroidal | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Iron Powder | Ferrite | Ferrite | Ferrite |
| Inductance | 5 µH | 250 µH | 250 µH | 5 µH | 100 µH |
| Tolerance | ±20% | ±15% | ±10% | ±20% | ±20% |
| Current Rating (Amps) | 23 A | 8 A | 6.4 A | 10 A | 10 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4mOhm Max | 41mOhm Max | 59mOhm Max | 13mOhm Max | 27mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal Cylinder | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.720" Dia x 1.380" L (18.28mm x 35.05mm) | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | 1.500" Dia (38.10mm) | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | 0.940" Dia x 1.620" L (23.88mm x 41.15mm) |
| Height - Seated (Max) | - | - | 1.110" (28.19mm) | - | - |
