Please send RFQ , we will respond immediately.

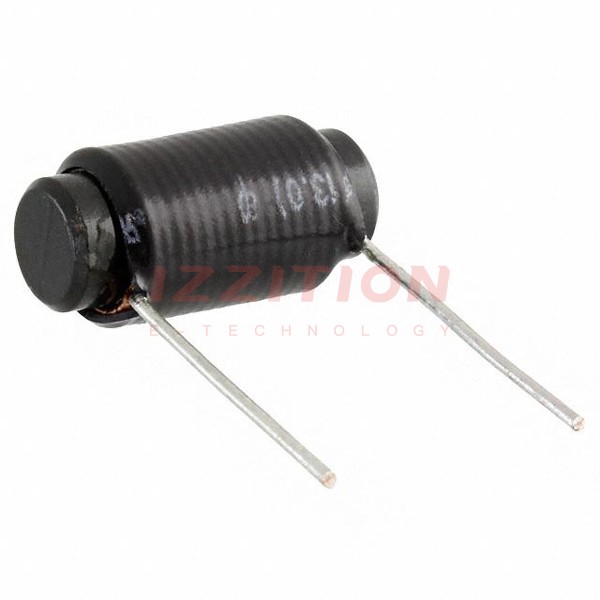

| Part Number | 5502-RC | 5702-RC | 5602-RC | 5501-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Toroidal | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Iron Powder | Ferrite | Ferrite |
| Inductance | 10 µH | 25 µH | 10 µH | 5 µH |
| Tolerance | ±20% | ±15% | ±10% | ±20% |
| Current Rating (Amps) | 9 A | 5.5 A | 14 A | 10 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 17mOhm Max | 14mOhm Max | 8mOhm Max | 13mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal Cylinder | Radial, Vertical (Open) | Radial, Vertical Cylinder | Radial, Horizontal Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.830" Dia (21.08mm) | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) |
| Height - Seated (Max) | - | - | 0.910" (23.11mm) | - |
