Please send RFQ , we will respond immediately.

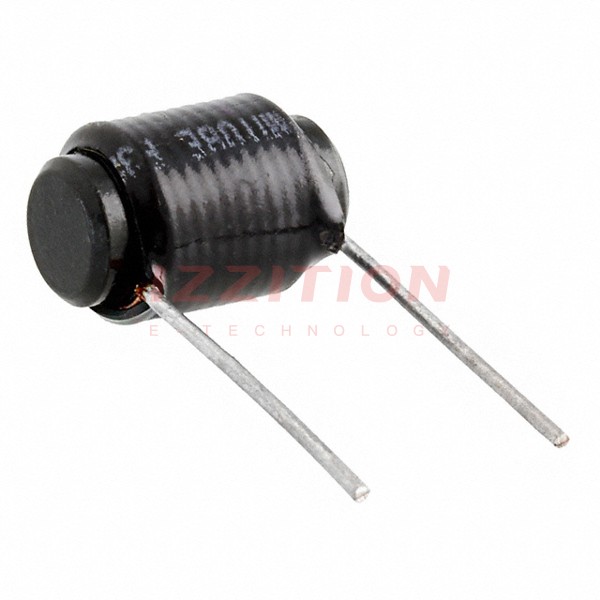

| Part Number | 5501-RC | 5701-RC | 5502-RC | 5521-RC | 5601-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Toroidal | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Iron Powder | Ferrite | Ferrite | Ferrite |
| Inductance | 5 µH | 10 µH | 10 µH | 5 µH | 5 µH |
| Tolerance | ±20% | ±15% | ±20% | ±20% | ±10% |
| Current Rating (Amps) | 10 A | 11 A | 9 A | 23 A | 15 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 13mOhm Max | 8mOhm Max | 17mOhm Max | 4mOhm Max | 7mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal Cylinder | Radial, Vertical (Open) | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | 0.720" Dia x 1.380" L (18.28mm x 35.05mm) | 0.830" Dia (21.08mm) |
| Height - Seated (Max) | - | - | - | - | 0.906" (23.00mm) |
