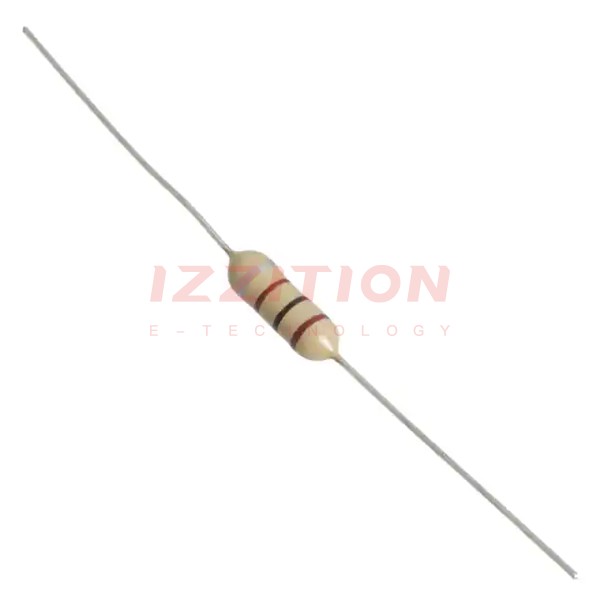

| Part Number | 5300-25-RC | 5300-05-RC | 5300-22-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 2.2 µH | 56 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 550 mA | 2.6 A | 650 mA |
| Current - Saturation (Isat) | 300mA | 2A | 400mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 670mOhm Max | 31mOhm Max | 470mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 3.9MHz | 130MHz | 5.8MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 7.96 MHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) |
| Height - Seated (Max) | - | - | - |
