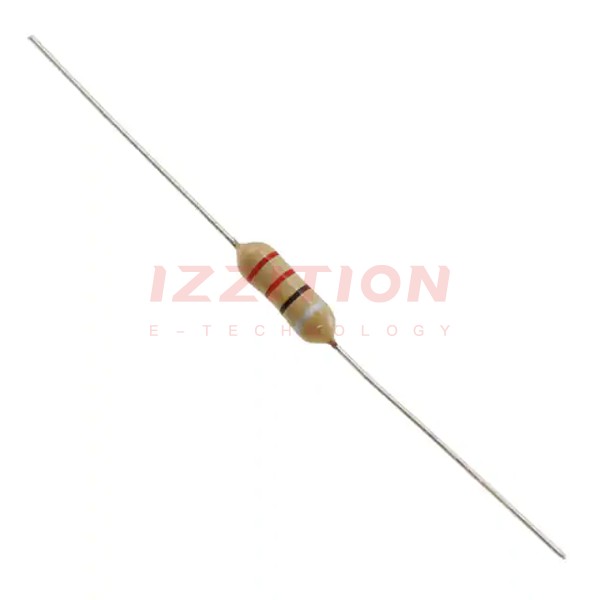

| Part Number | 5300-17-RC | 5300-37-RC | 5300-18-RC | 5300-19-RC | 5300-07-RC | 5300-13-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 1 mH | 27 µH | 33 µH | 3.3 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1 A | 160 mA | 950 mA | 910 mA | 1.9 A | 1.5 A |
| Current - Saturation (Isat) | 640mA | 95mA | 580mA | 530mA | 1.7A | 970mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 190mOhm Max | 7.9Ohm Max | 220mOhm Max | 240mOhm Max | 54mOhm Max | 95mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 8.4MHz | 1MHz | 8MHz | 7.6MHz | 110MHz | 25MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 7.96 MHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
