Please send RFQ , we will respond immediately.

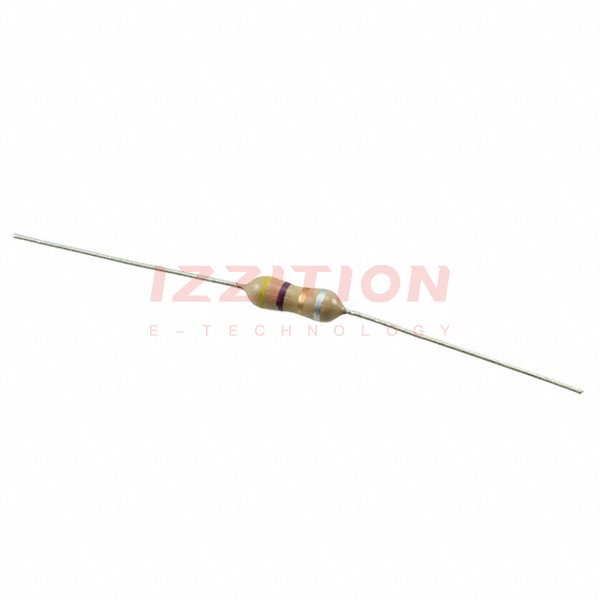

| Part Number | 5300-09-RC | 5300-19-RC | 5300-01-RC | 5300-03-RC | 5300-05-RC | 5300-07-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 µH | 33 µH | 1 µH | 1.5 µH | 2.2 µH | 3.3 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.7 A | 910 mA | 3.3 A | 3.1 A | 2.6 A | 1.9 A |
| Current - Saturation (Isat) | 1.4A | 530mA | 3A | 2.5A | 2A | 1.7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 68mOhm Max | 240mOhm Max | 18mOhm Max | 20mOhm Max | 31mOhm Max | 54mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 86MHz | 7.6MHz | 190MHz | 160MHz | 130MHz | 110MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 1 kHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
