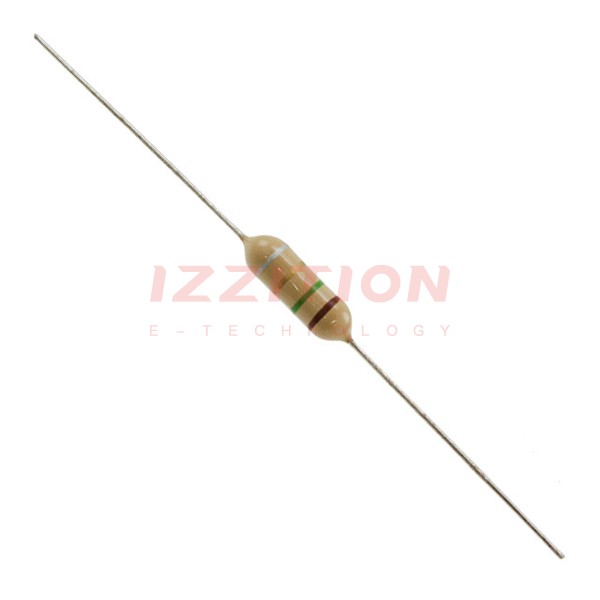

| Part Number | 5300-03 | 5300-05 | 5300-01 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 2.2 µH | 1 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 3.1 A | 2.6 A | 3.3 A |
| Current - Saturation (Isat) | 2.5A | 2A | 3A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 31mOhm Max | 18mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 160MHz | 130MHz | 190MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) |
| Height - Seated (Max) | - | - | - |
