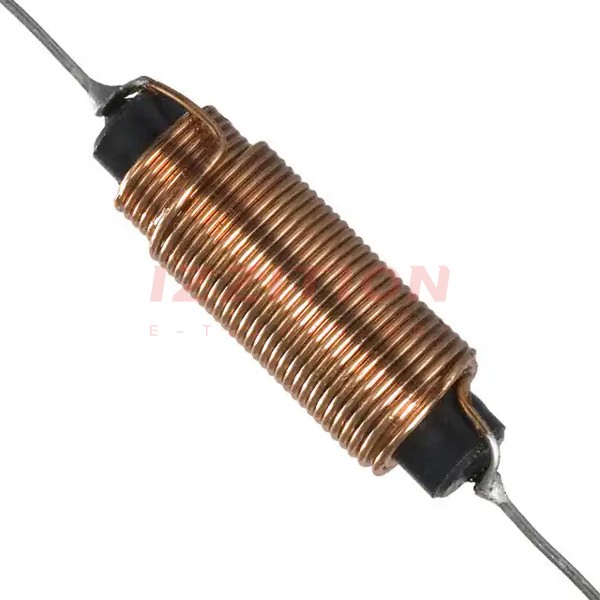

| Part Number | 5254-RC | 5258-RC | 5256-RC | 5250-RC | 5252-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 250 µH | 1 mH | 500 µH | 100 µH | 125 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 1 A | 2 A | 2 A | 3.5 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 170mOhm Max | 550mOhm Max | 260mOhm Max | 216mOhm Max | 80mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 1.3MHz | 650kHz | - | - | 2.25MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) |
| Height - Seated (Max) | - | - | - | - | - |
