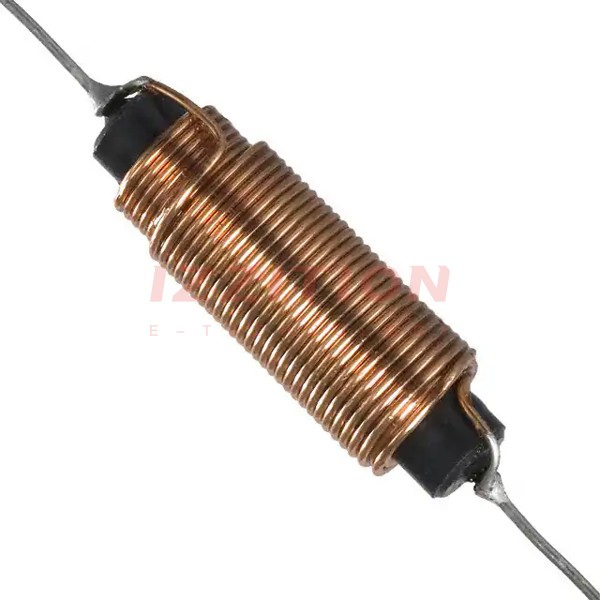

| Part Number | 5240-RC | 5250-RC | 5248-RC | 5220-RC | 5230-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Iron | Ferrite |
| Inductance | 40 µH | 100 µH | 68 µH | 8.8 µH | 4 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 2 A | 5 A | 10 A | 8 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 82mOhm Max | 216mOhm Max | 54mOhm Max | 21mOhm Max | 12mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 145MHz | - | 4.5MHz | 64MHz | 165MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) |
| Height - Seated (Max) | - | - | - | - | - |
