5230-RC
  • Share:

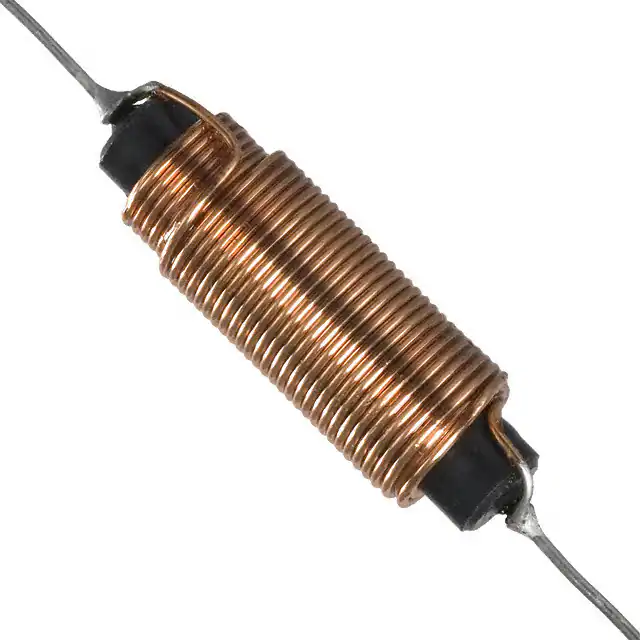

Bourns Inc. 5230-RC

Manufacturer No:
5230-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
5230-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 4UH 8A 12 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:4 µH
Tolerance:±20%
Current Rating (Amps):8 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):12mOhm Max
Q @ Freq:-
Frequency - Self Resonant:165MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.380" Dia x 0.875" L (9.65mm x 22.23mm)
Height - Seated (Max):-
0 Remaining View Similar

In Stock

$2.44
277

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5230-RC 5250-RC   5240-RC   5220-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Obsolete
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Iron
Inductance 4 µH 100 µH 40 µH 8.8 µH
Tolerance ±20% ±20% ±20% ±20%
Current Rating (Amps) 8 A 2 A 3 A 10 A
Current - Saturation (Isat) - - - -
Shielding Unshielded Unshielded Unshielded Unshielded
DC Resistance (DCR) 12mOhm Max 216mOhm Max 82mOhm Max 21mOhm Max
Q @ Freq - - - -
Frequency - Self Resonant 165MHz - 145MHz 64MHz
Ratings - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Inductance Frequency - Test 7.96 MHz 1 kHz 1 kHz 7.96 MHz
Features - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case Axial Axial Axial Axial
Supplier Device Package - - - -
Size / Dimension 0.380" Dia x 0.875" L (9.65mm x 22.23mm) 0.380" Dia x 1.250" L (9.65mm x 31.75mm) 0.310" Dia x 1.250" L (7.87mm x 31.75mm) 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) - - - -
