Please send RFQ , we will respond immediately.

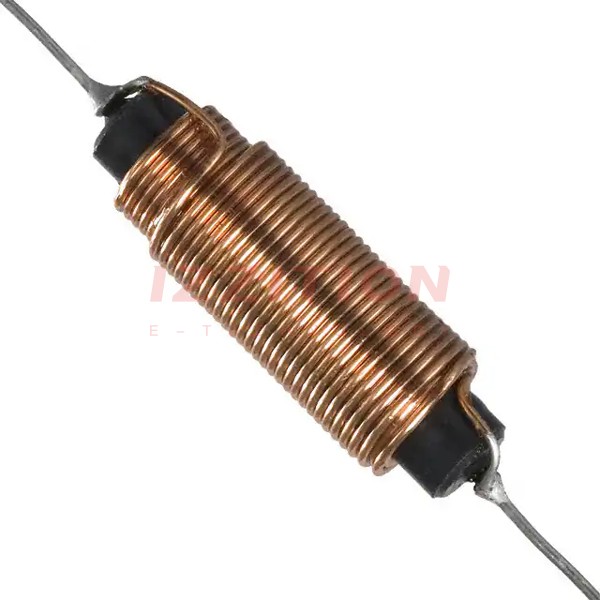

| Part Number | 5219-RC | 5218-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron |
| Inductance | 4.9 µH | 3.35 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 15 A | 20 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 16mOhm Max | 10mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 95MHz | 107MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) |
| Height - Seated (Max) | - | - |
