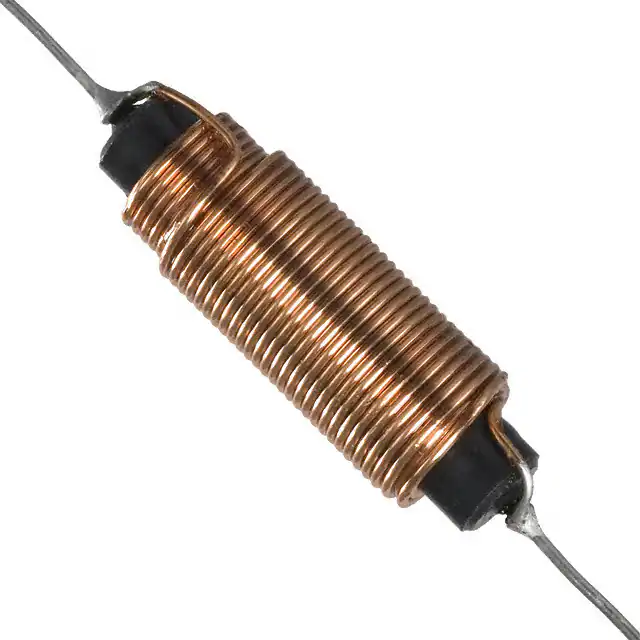

| Part Number | 5218-RC | 5258-RC | 5248-RC | 5219-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Ferrite | Ferrite | Iron |
| Inductance | 3.35 µH | 1 mH | 68 µH | 4.9 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 20 A | 1 A | 5 A | 15 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 550mOhm Max | 54mOhm Max | 16mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 107MHz | 650kHz | 4.5MHz | 95MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 1 kHz | 1 kHz | 7.96 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) |
| Height - Seated (Max) | - | - | - | - |
