Please send RFQ , we will respond immediately.

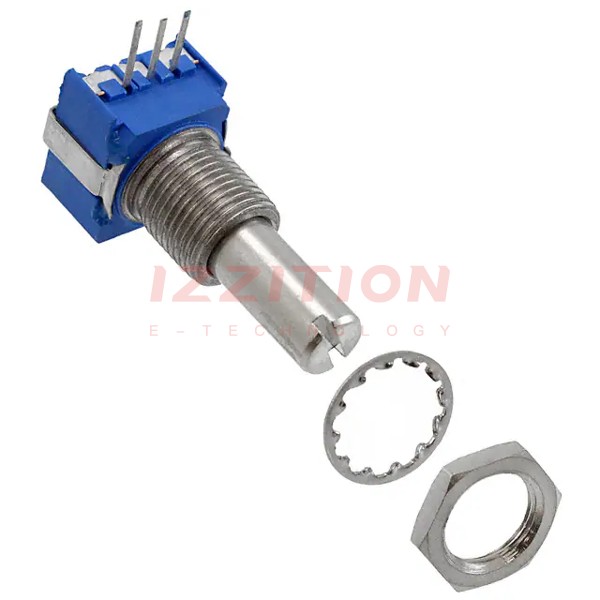

| Part Number | 51AAA-B28-A15L | 53AAA-B28-A15L | 51AAD-B28-A15L | 51AAA-B28-B15L | 51AAA-B28-D15L | 51AAA-B24-A15L |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 10k | 10k | 10k |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±20% | ±10% |
| Power (Watts) | 1W | 1W | 1W | 0.5W, 1/2W | 0.25W, 1/4W | 1W |
| Built in Switch | None | None | None | None | None | None |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | Sealed | Sealed | Sealed | Sealed | Sealed | Sealed |
| Taper | Linear | Linear | Linear | Linear | Logarithmic | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | User Defined | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C |
| Rotation | 290° | 290° | 290° | 290° | 290° | 290° |
| Resistive Material | Cermet | Cermet | Cermet | Conductive Plastic | Conductive Plastic | Cermet |
| Termination Style | PC Pins | Solder Lug | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.875" (22.23mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
