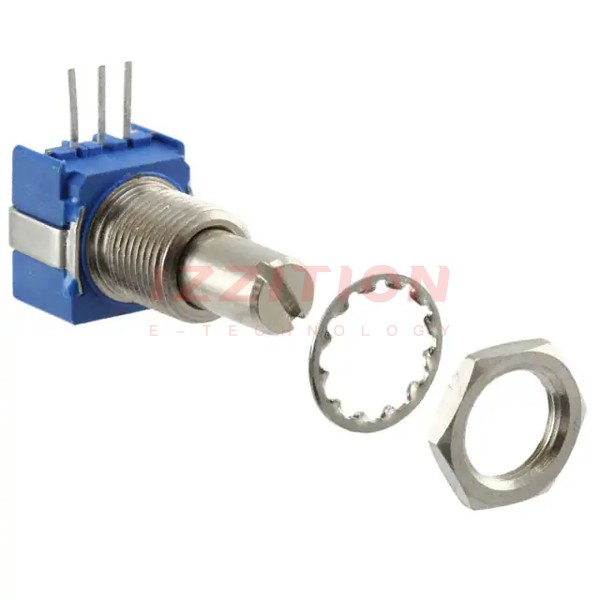

| Part Number | 51AAA-B24-D10L | 51AAA-B24-D13L | 51AAA-B24-A10L | 51AAA-B24-B10L |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 1K | 5k | 1K | 1K |
| Tolerance | ±20% | ±20% | ±10% | ±20% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 1W | 0.5W, 1/2W |
| Built in Switch | None | None | None | None |
| Number of Turns | 1 | 1 | 1 | 1 |
| Features | Sealed | Sealed | Sealed | Sealed |
| Taper | Logarithmic | Logarithmic | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C | ±1000ppm/°C |
| Rotation | 290° | 290° | 290° | 290° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Cermet | Conductive Plastic |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
