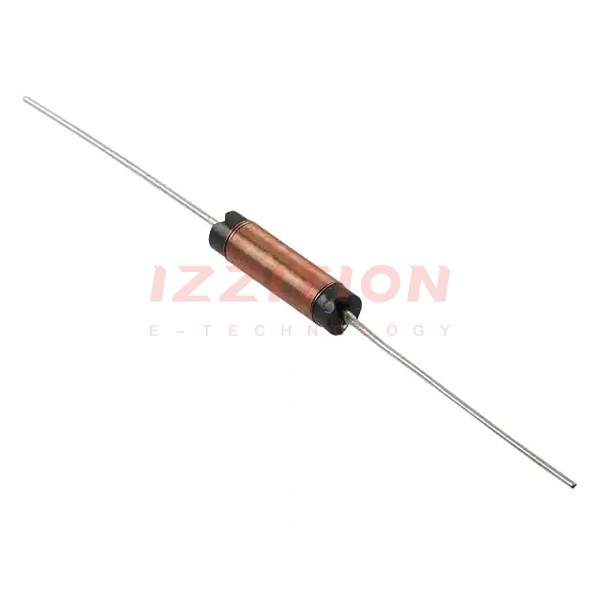

| Part Number | 4631-RC | 4632-RC | 4611-RC | 4630-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Phenolic | Iron |
| Inductance | 82 µH | 100 µH | 8.2 µH | 62 µH |
| Tolerance | ±5% | ±5% | ±10% | ±5% |
| Current Rating (Amps) | 450 mA | 400 mA | 600 mA | 475 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.9Ohm Max | 3Ohm Max | 1.2Ohm Max | 1.2Ohm Max |
| Q @ Freq | 85 @ 2.52MHz | 107 @ 790kHz | 57 @ 7.96MHz | 83 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz | 12MHz | 65MHz | 16MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 790 kHz | 7.96 MHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) |
| Height - Seated (Max) | - | - | - | - |
