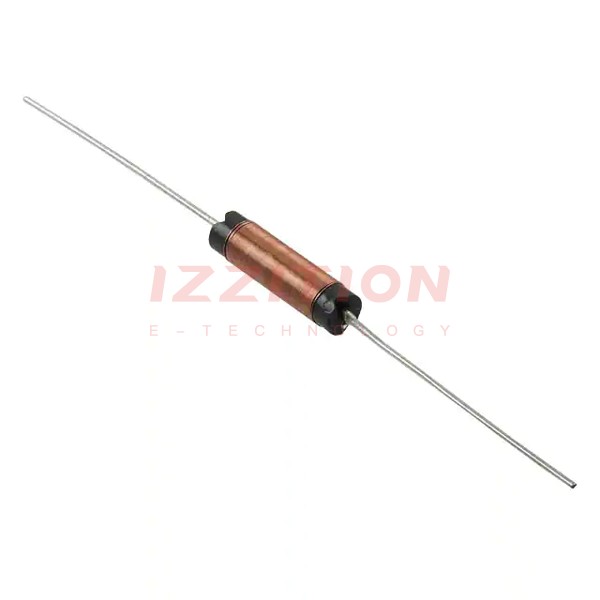

| Part Number | 4628-RC | 4629-RC | 4608-RC | 4622-RC | 4624-RC | 4626-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Phenolic | Iron | Iron | Iron |
| Inductance | 39 µH | 55 µH | 3.9 µH | 10 µH | 15 µH | 24 µH |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 600 mA | 500 mA | 1 A | 1.5 A | 1 A | 800 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 650mOhm Max | 1Ohm Max | 450mOhm Max | 110mOhm Max | 170mOhm Max | 340mOhm Max |
| Q @ Freq | 70 @ 2.52MHz | 72 @ 2.52MHz | 60 @ 7.96MHz | 69 @ 2.52MHz | 62 @ 2.52MHz | 65 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz | 17MHz | 93MHz | 40MHz | 33MHz | 25MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
