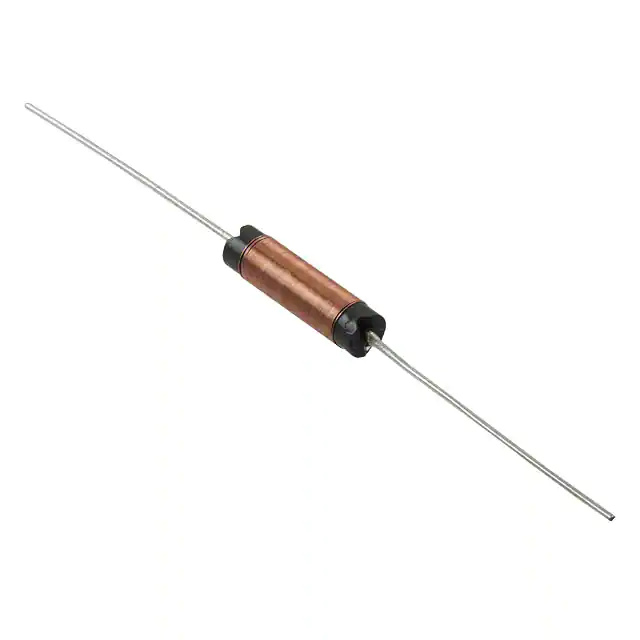

| Part Number | 4622-RC | 4624-RC | 4626-RC | 4628-RC | 4632-RC | 4652-RC | 4629-RC | 4642-RC | 4602-RC | 4612-RC |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Iron | Iron | Iron | Iron | Iron | Phenolic | Iron | Phenolic | Phenolic | Phenolic |
| Inductance | 10 µH | 15 µH | 24 µH | 39 µH | 100 µH | 1 mH | 55 µH | 100 µH | 1 µH | 10 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±20% | ±10% |
| Current Rating (Amps) | 1.5 A | 1 A | 800 mA | 600 mA | 400 mA | 160 mA | 500 mA | 160 mA | 2 A | 500 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 110mOhm Max | 170mOhm Max | 340mOhm Max | 650mOhm Max | 3Ohm Max | 19Ohm Max | 1Ohm Max | 5.4Ohm Max | 50mOhm Max | 1.5Ohm Max |
| Q @ Freq | 69 @ 2.52MHz | 62 @ 2.52MHz | 65 @ 2.52MHz | 70 @ 2.52MHz | 107 @ 790kHz | 59 @ 252kHz | 72 @ 2.52MHz | 49 @ 790kHz | 60 @ 7.96MHz | 36 @ 2.52MHz |
| Frequency - Self Resonant | 40MHz | 33MHz | 25MHz | 20MHz | 12MHz | 3.7MHz | 17MHz | 11MHz | 190MHz | 61MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 790 kHz | 252 kHz | 2.52 MHz | 790 kHz | 7.96 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.410" Dia x 0.875" L (10.41mm x 22.22mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
