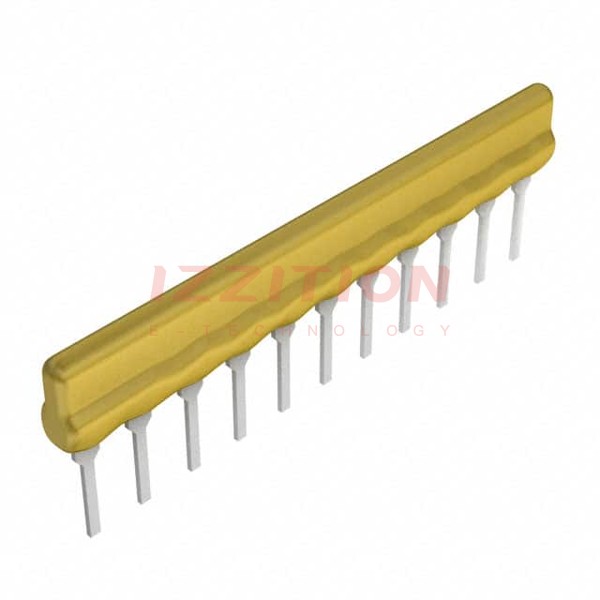

| Part Number | 4611X-101-122LF | 4611X-101-123LF | 4611X-101-152LF | 4611X-101-222LF | 4613X-101-122LF | 4611X-101-102LF | 4611X-101-121LF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 1.2k | 12k | 1.5k | 2.2k | 1.2k | 1K | 120 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 10 | 10 | 10 | 10 | 12 | 10 | 10 |
| Resistor Matching Ratio | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | 50ppm/°C | - | 50ppm/°C |
| Number of Pins | 11 | 11 | 11 | 11 | 13 | 11 | 11 |
| Power Per Element | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 11-SIP | 11-SIP | 11-SIP | 11-SIP | 13-SIP | 11-SIP | 11-SIP |
| Supplier Device Package | 11-SIP | 11-SIP | 11-SIP | 11-SIP | 13-SIP | 11-SIP | 11-SIP |
| Size / Dimension | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 1.298" L x 0.098" W (32.97mm x 2.49mm) | 1.098" L x 0.098" W (27.89mm x 2.49mm) | 1.098" L x 0.098" W (27.89mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
