Please send RFQ , we will respond immediately.

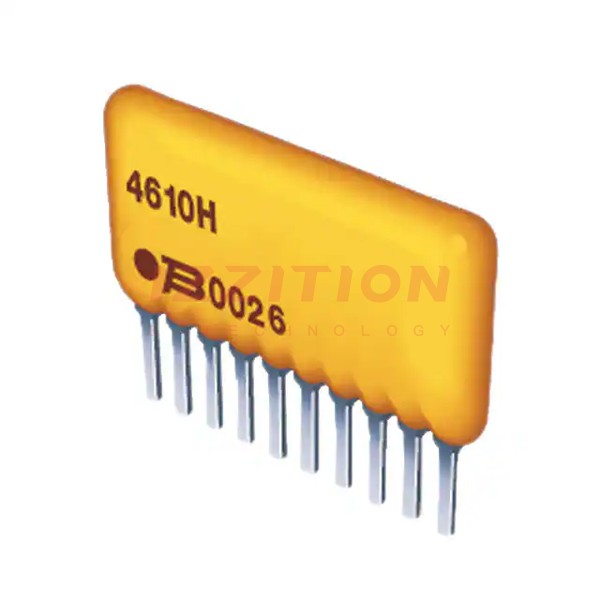

| Part Number | 4610H-101-102LF | 4610X-101-102LF | 4610M-101-102LF | 4610H-101-103LF | 4610H-101-104LF | 4610H-101-122LF | 4610H-101-152LF | 4610H-101-182LF | 4610H-101-502LF | 4610H-102-102LF | 4610H-101-202LF | 4610H-101-101LF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Isolated | Bussed | Bussed |
| Resistance (Ohms) | 1K | 1K | 1K | 10k | 100k | 1.2k | 1.5k | 1.8k | 5k | 1K | 2K | 100 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 5 | 9 | 9 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | 50ppm/°C | - | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C |
| Number of Pins | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Per Element | 300mW | 200mW | 250mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 500mW | 300mW | 300mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) | 0.998" L x 0.098" W (25.35mm x 2.49mm) |
| Height - Seated (Max) | 0.350" (8.89mm) | 0.200" (5.08mm) | 0.250" (6.35mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) |
