Please send RFQ , we will respond immediately.

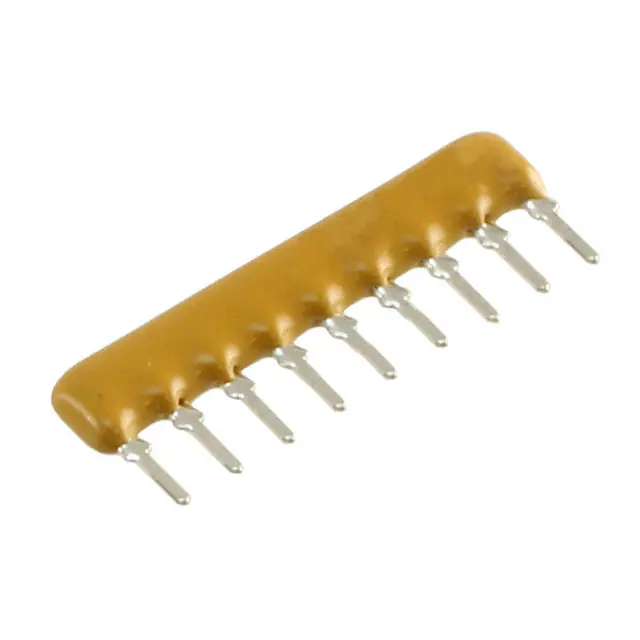

| Part Number | 4609X-AP1-103LF | 4609X-AP1-104LF | 4609X-AP1-203LF | 4609X-AP1-102LF |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 10k | 100k | 20k | 1K |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 8 | 8 | 8 | 8 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 9 | 9 | 9 | 9 |
| Power Per Element | 200mW | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 9-SIP | 9-SIP | 9-SIP | 9-SIP |
| Supplier Device Package | 9-SIP | 9-SIP | 9-SIP | 9-SIP |
| Size / Dimension | 0.898" L x 0.098" W (22.81mm x 2.49mm) | 0.898" L x 0.098" W (22.81mm x 2.49mm) | 0.898" L x 0.098" W (22.81mm x 2.49mm) | 0.898" L x 0.098" W (22.81mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
