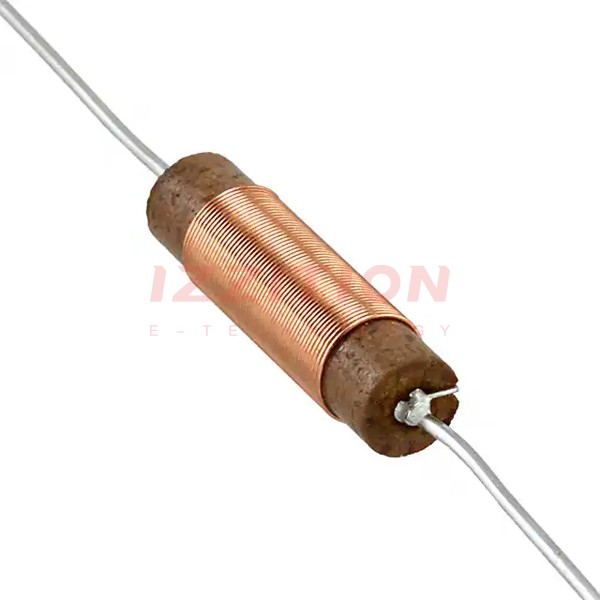

| Part Number | 4609-RC | 4629-RC | 4602-RC | 4604-RC | 4606-RC | 4608-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Active | Active | Active | Active |
| Type | Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Iron | Phenolic | Phenolic | Phenolic | Phenolic |
| Inductance | 5.5 µH | 55 µH | 1 µH | 1.5 µH | 2.4 µH | 3.9 µH |
| Tolerance | ±10% | ±5% | ±20% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 850 mA | 500 mA | 2 A | 1.8 A | 1.5 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 670mOhm Max | 1Ohm Max | 50mOhm Max | 93mOhm Max | 190mOhm Max | 450mOhm Max |
| Q @ Freq | 57 @ 7.96MHz | 72 @ 2.52MHz | 60 @ 7.96MHz | 58 @ 7.96MHz | 56 @ 7.96MHz | 60 @ 7.96MHz |
| Frequency - Self Resonant | 80MHz | 17MHz | 190MHz | 149MHz | 120MHz | 93MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 2.52 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
