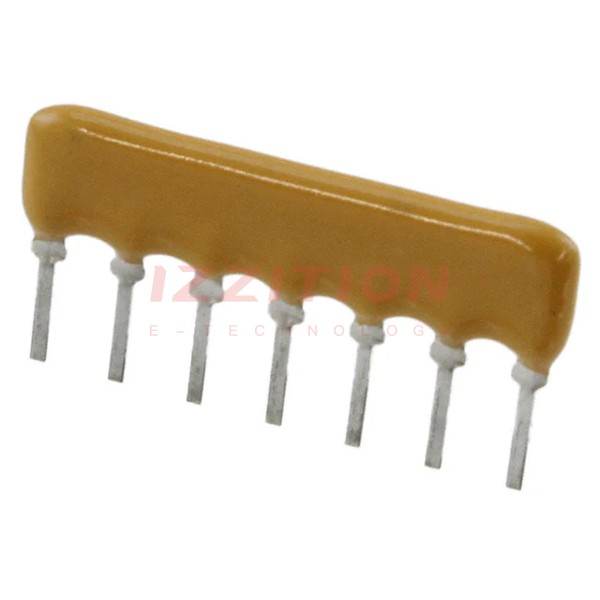

| Part Number | 4607X-101-105LF | 4608X-101-105LF | 4607X-101-100LF | 4607X-101-101LF | 4607X-101-102LF | 4607X-101-103LF | 4607X-101-104LF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 1M | 1M | 10 | 100 | 1K | 10k | 100k |
| Tolerance | ±2% | ±2% | ±1Ohm | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Resistor Matching Ratio | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | 50ppm/°C | - | - | - | - |
| Number of Pins | 7 | 8 | 7 | 7 | 7 | 7 | 7 |
| Power Per Element | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±250ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 7-SIP | 8-SIP | 7-SIP | 7-SIP | 7-SIP | 7-SIP | 7-SIP |
| Supplier Device Package | 7-SIP | 8-SIP | 7-SIP | 7-SIP | 7-SIP | 7-SIP | 7-SIP |
| Size / Dimension | 0.698" L x 0.098" W (17.73mm x 2.49mm) | 0.798" L x 0.098" W (20.27mm x 2.49mm) | 0.698" L x 0.098" W (17.73mm x 2.49mm) | 0.698" L x 0.098" W (17.73mm x 2.49mm) | 0.698" L x 0.098" W (17.73mm x 2.49mm) | 0.698" L x 0.098" W (17.73mm x 2.49mm) | 0.698" L x 0.098" W (17.73mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
