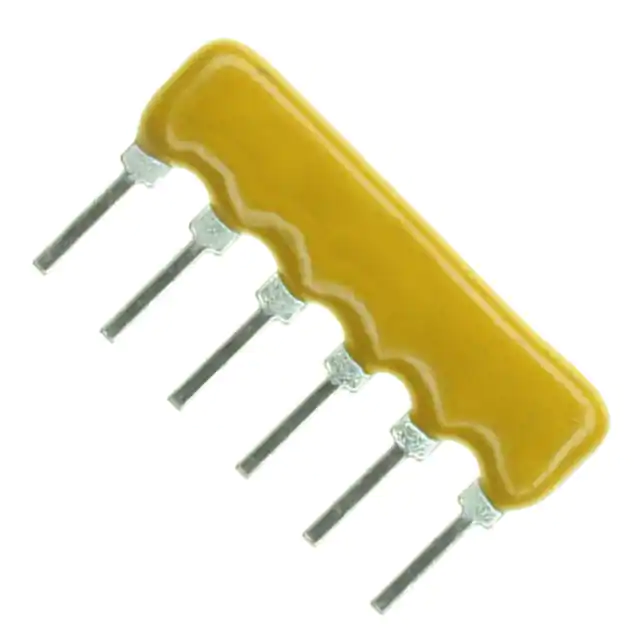

| Part Number | 4606X-AP2-102LF | 4606X-AP2-103LF | 4606X-AP2-104LF | 4606X-AP2-105LF | 4606X-AP2-152LF | 4606X-AP2-202LF | 4606X-AP1-102LF | 4606X-AP2-100LF | 4606X-AP2-101LF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Bussed | Isolated | Isolated |
| Resistance (Ohms) | 1K | 10k | 100k | 1M | 1.5k | 2K | 1K | 10 | 100 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1Ohm | ±2% |
| Number of Resistors | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 3 | 3 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | - |
| Number of Pins | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Power Per Element | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 200mW | 300mW | 300mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±250ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Supplier Device Package | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Size / Dimension | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
