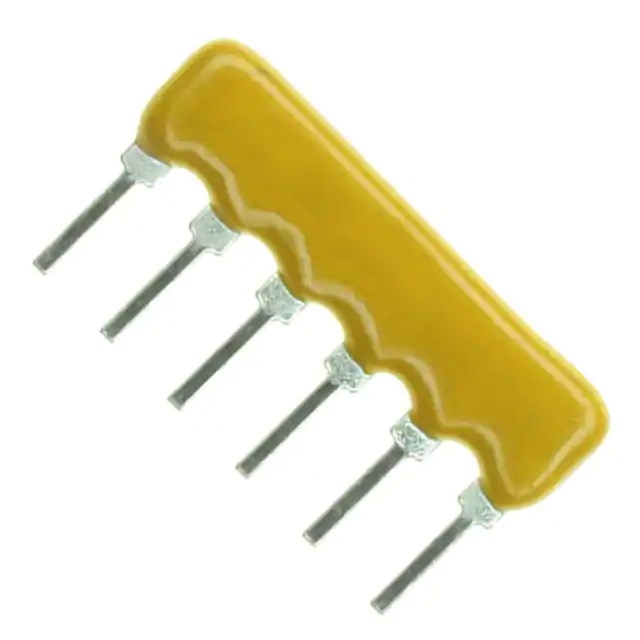

| Part Number | 4606X-102-220 | 4606X-102-270 | 4606X-102-820 | 4606X-102-221 | 4606X-102-222 | 4606X-102-223 | 4606X-102-224 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 22 | 27 | 82 | 220 | 2.2k | 22k | 220k |
| Tolerance | ±1Ohm | ±1Ohm | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Resistor Matching Ratio | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - |
| Number of Pins | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Power Per Element | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW | 300mW |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Supplier Device Package | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Size / Dimension | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
