Please send RFQ , we will respond immediately.

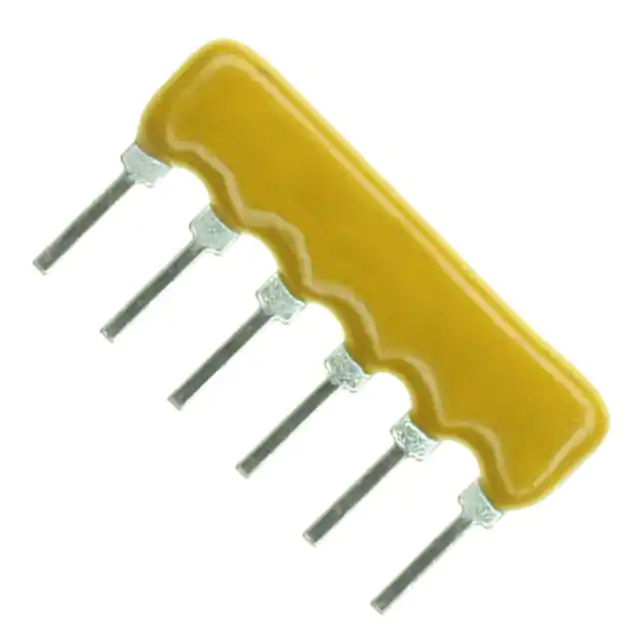

| Part Number | 4606X-101-224LF | 4606X-101-824LF | 4606X-101-225LF | 4606X-101-274LF | 4606X-101-124LF | 4606X-101-204LF | 4606X-101-220LF | 4606X-101-221LF | 4606X-101-222LF | 4606X-101-223LF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 220k | 820k | 2.2M | 270k | 120k | 200k | 22 | 220 | 2.2k | 22k |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1Ohm | ±2% | ±2% | ±2% |
| Number of Resistors | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | - | - |
| Number of Pins | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Power Per Element | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±250ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Supplier Device Package | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP | 6-SIP |
| Size / Dimension | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
