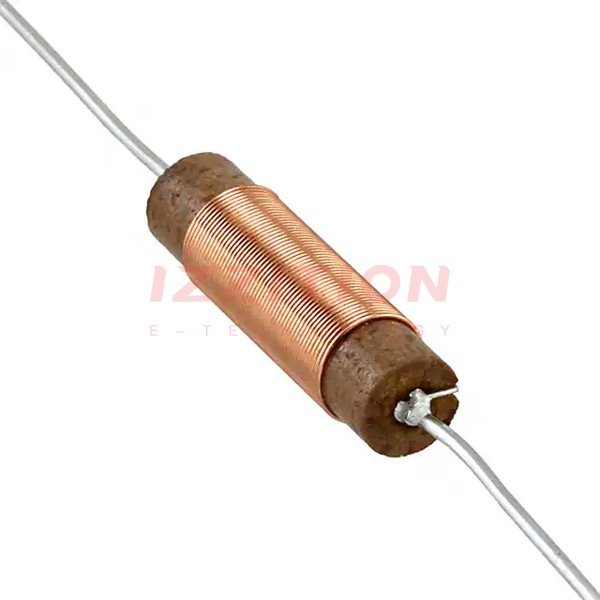

| Part Number | 4606-RC | 4609-RC | 4608-RC | 4626-RC | 4666-RC | 4602-RC | 4604-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Phenolic | Phenolic | Iron | Iron | Phenolic | Phenolic |
| Inductance | 2.4 µH | 5.5 µH | 3.9 µH | 24 µH | 2.4 mH | 1 µH | 1.5 µH |
| Tolerance | ±10% | ±10% | ±10% | ±5% | ±5% | ±20% | ±10% |
| Current Rating (Amps) | 1.5 A | 850 mA | 1 A | 800 mA | 160 mA | 2 A | 1.8 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 190mOhm Max | 670mOhm Max | 450mOhm Max | 340mOhm Max | 15Ohm Max | 50mOhm Max | 93mOhm Max |
| Q @ Freq | 56 @ 7.96MHz | 57 @ 7.96MHz | 60 @ 7.96MHz | 65 @ 2.52MHz | 80 @ 252kHz | 60 @ 7.96MHz | 58 @ 7.96MHz |
| Frequency - Self Resonant | 120MHz | 80MHz | 93MHz | 25MHz | 1.7MHz | 190MHz | 149MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 2.52 MHz | 1 kHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
