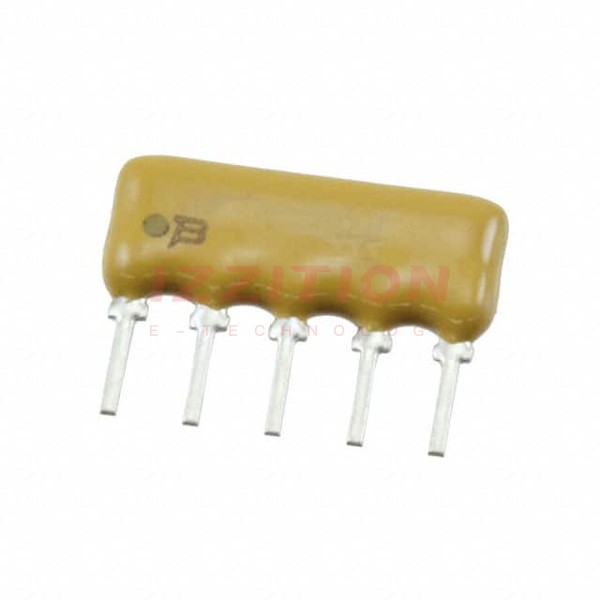

| Part Number | 4605M-101-103LF | 4605X-101-103LF | 4605M-101-102LF |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 10k | 10k | 1K |
| Tolerance | ±2% | ±2% | ±2% |
| Number of Resistors | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | 50ppm/°C | - | 50ppm/°C |
| Number of Pins | 5 | 5 | 5 |
| Power Per Element | 250mW | 200mW | 250mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 5-SIP | 5-SIP | 5-SIP |
| Supplier Device Package | 5-SIP | 5-SIP | 5-SIP |
| Size / Dimension | 0.498" L x 0.098" W (12.65mm x 2.49mm) | 0.498" L x 0.098" W (12.65mm x 2.49mm) | 0.498" L x 0.098" W (12.65mm x 2.49mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.200" (5.08mm) | 0.250" (6.35mm) |
