Please send RFQ , we will respond immediately.

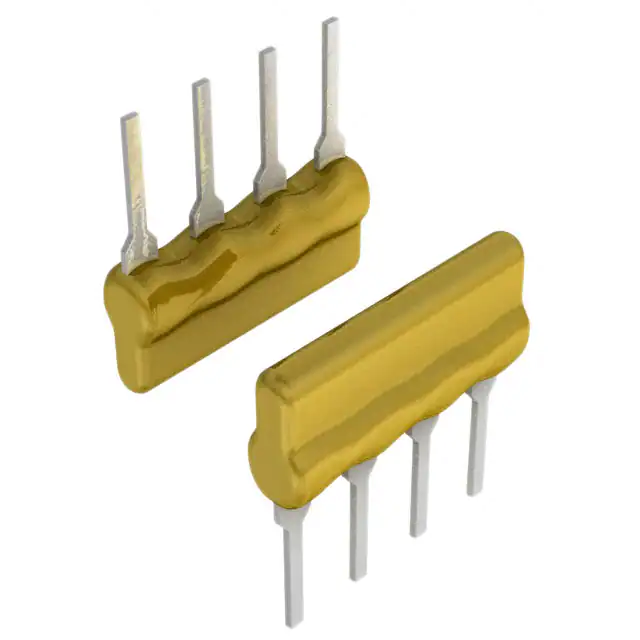

| Part Number | 4604X-102-223LF | 4604X-102-224LF | 4604X-102-273LF | 4604X-101-223LF | 4604X-102-123LF | 4604X-102-203LF | 4604X-102-220LF | 4604X-102-221LF | 4604X-102-222LF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Bussed | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 22k | 220k | 27k | 22k | 12k | 20k | 22 | 220 | 2.2k |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1Ohm | ±2% | ±2% |
| Number of Resistors | 2 | 2 | 2 | 3 | 2 | 2 | 2 | 2 | 2 |
| Resistor Matching Ratio | - | - | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - | - | - | - |
| Number of Pins | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power Per Element | 300mW | 300mW | 300mW | 200mW | 300mW | 300mW | 300mW | 300mW | 300mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±250ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Supplier Device Package | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP | 4-SIP |
| Size / Dimension | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) | 0.398" L x 0.098" W (10.11mm x 2.49mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
